Glass Fiber Woven Tape For Masonry Reinforcement

Introduction

Masonry has high compressive strength and low tensile strength

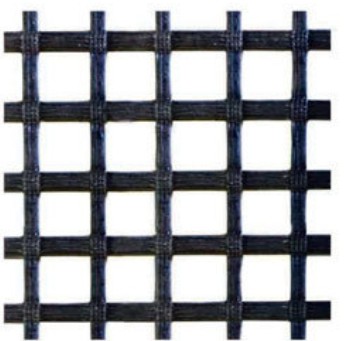

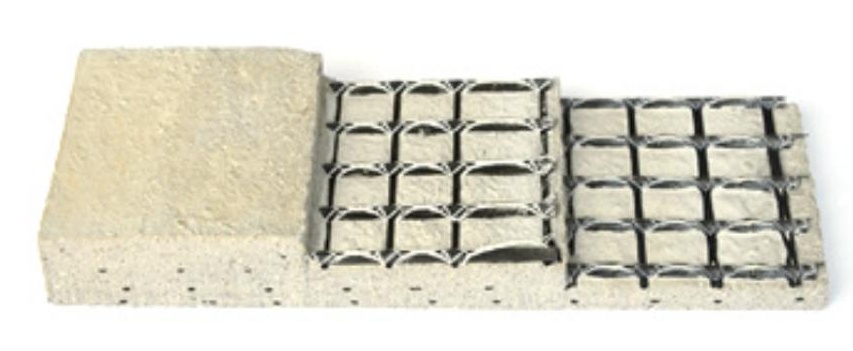

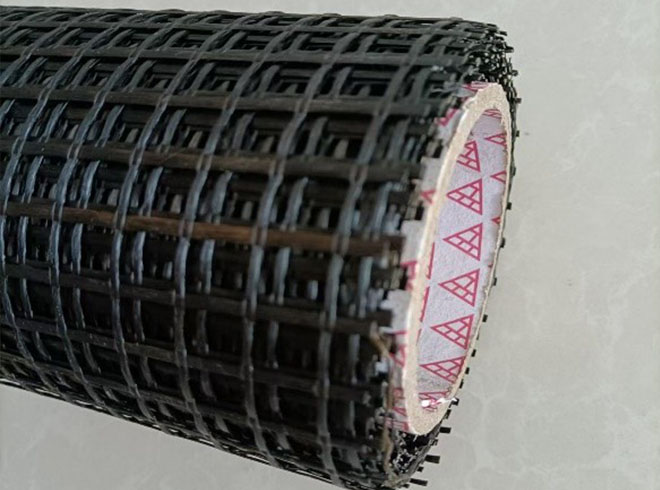

Bi-GlassTec E-glass roving woven tape(HARDTAPE) for masonry reinforcement is intended to be used in horizontal masonry joints,with normal purpose motar and AAC blocks,clay blocks,clay bricks,dense aggregate concrete blocks,stone,etc.as walls or partitions for structural use.

benefits both structural and traditional masonry. Any reinforcement is better than no reinforcement.

Application Fields

Inside Applications

Lintels and openings
long walls;
Beam supports
Deflecting floor decks
Stack bonded masonry
Wind loaded wall

Outside Applications

Load-bearing walls
Lintels and combined lintels
Wind loaded and long walls
Gable ends
Stack bonded masonry walls
Claustra

Typical applications of BI-GLASSTEC HardTape:

01. Stress concentration

Stress concentrations around window openings can be absorbed by applying two layers of BI-GLASSTEC HardTape above and below the window.

: With two layers of HardTape

: Without two layers of HardTape

: With HardTape for masonry stress concentration

02. Long walls

Shrinkage or expansion of materials can lead to cracks in the masonry. BI-GLASSTEC HardTape allows for larger gaps between movement joints.

: with HardTape

: without HardTape

: With HardTape

03. Point loads

Point loads, are highly concentrated loads that cause tensile stress and cracks in the masonry. Using a concrete beam as support interferes with the homogeneous character of the masonry.
Depending on the volume of the load, three to Bi-GlassTec glass fiber roving woven tape can be used with BI-GLASSTEC HardTape steel cord reinforcement tape for masonry. This BI-GLASSTEC HardTape ensures the even distribution of the load. It is important to check that the contact stress between the point load and the masonry is smaller than or equal to the calculated value of the compressive strength of the masonry.

: With 4 layers HardTape(red line) getting even distribution of point load

04.Partition walls susceptible to deformation

Partition walls on a floor plate will start to crack in where there is too much sagging. To prevent this, we can use Bi-GlassTec HardTape to reinforce the wall.

: With HardTape to prevent partition wall deformation

05.Stack bonded masonry

Bi-GlassTec HardTape can ensure stability of the masonry with and without a stack bond. For masonry with a stack bond, the bricks are placed directly above each other, meaning reinforcement is essential for wall stability. With masonry without overlaps, reinforcement is required to compensate for insufficient bending bonding.

: With HardTape without overlap

: with HardTape stack bonded masonry

: With HardTape reinforcement stack bonded masonry

06.Corner and T-connections

Bi-GlassTec HardTape can provide the perfect corner connection. Reinforced corner and T-connection can decrease crack,evenly distribute load,eliminate stress concentration.

: with HardTape reinforcement masonry corner and T-connection

07.Laterally loaded wall panels

Bi-GlassTec HardTape for masonry reinforcement allows longer or thinner wall partitions that can withstand high wind loads. Retaining walls, Cellar walls, or silo walls are exposed to considerable stresses from lateral loading. Bi-GlassTec HardTape reinforcement increases the loading capacity of the wall span between the columns.

: With HardTape increases lateral loading capacity

08.Gables

Improve the stability of gables by reinforcing a joint every 300 mm height with Bi-GlassTec HardTape. If the gables are more than 8 m high ,it is recommended to reinforce every 200 mm . Always take the recommendations for long walls into account.

: With HardTape reinforcement gable

09.Facade support

Prevent cracks by reinforcing one or two joints above the facade support with Bi-GlassTec HardTape.

: With HardTape reinforcement façade support

10.Differential settlements

Masonry on partly hardened soil or uneven terrain is susceptible to deformations and stresses. Bi-GlassTec HardTape is recommended to reinforce the masonry.Reinforce the first 5 joints and foundation ,Reinforce masonry located higher up every 400 mm

: With HardTape reinforcement masonry on uneven terrain

11.Masonry beam design

Masonry beams with Bi-GlassTec HardTape reinforcement absorb the bending moments over windows and doors. They can be used with soldier- or stretcher course.

Note:These beams are only suitable for non-bearing masonry, using normal masonry bonding. The mortar quality requires minimal compressive strength of M5 and a minimal bond strength of 0.20 N/mm².

: With HardTape soldier course

: with HardTape stretcher course

12.Claustra masonry

Bi-GlassTec HardTape is the perfect reinforcement material for claustra masonry,this can remarkblly increase the masonry stability ,tensile strength.

: With HardTape reinforcement claustra masonry





Specifications

No.	ITEM	UNIT	RESULTS
1	roll length	m	50/100
2	Tape width	mm	100/150/200
3	Thickness	mm	2
4	Mesh size	mm	12.7*12.7
5	Transverse break force	KN	60/100
6	Longitudinal break force	KN	60/100
7	Elongation at break	%	4
*8	Bond strength	KN	≥12	Combinaton of Bricks+motar+tape,with 250mm embedment length
**9	Shear strength	KN	≥8
***10	In-plane Flexural strength	KN	≥20
Remarks	the masonry motar used with Bi-Glass tape must meet following requirements,air content 18-23%,flexural strength (28 days cured) 3.2-5.0 N/mm2,compressive strength 12-16 N/mm2.;the bricks(solid clay bricks,perforated clay blocks),autoclaved aerated concrete blocks, solid dense aggregate concrete blocks stones,etc,all these masonry materials,must meet relevant specifications or standards. * Tested masonry structural combination of AAC blocks+normal thinner motar+Bi-GlassTec HardTape,effective span 2000mm,effective height 310mm,width 260mm, Mean value of maximum load 8KN; *** Mid span deflection at maximum load 12mm,masonry structural combination of AAC blocks+normal thinner motar+Bi-GlassTec HardTape,effective span 2000mm,effective height 310mm,width 260mm, Mean value of maximum load 20KN.
