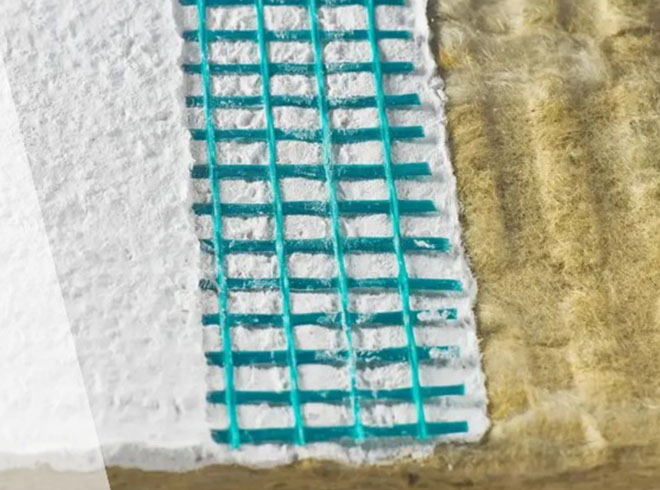

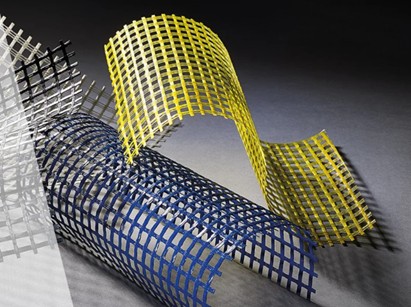

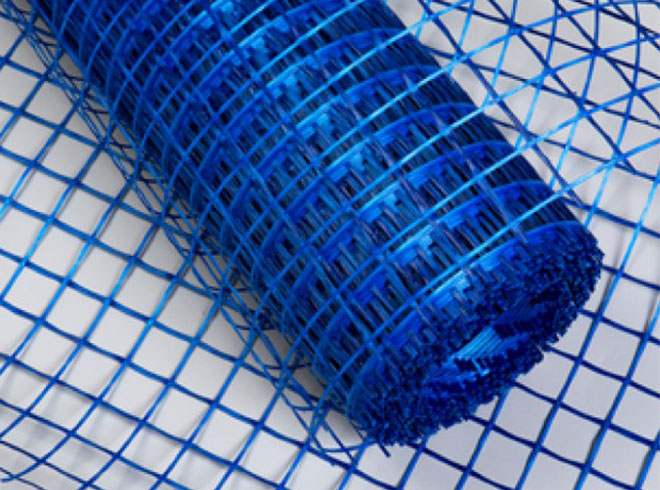

Woven mesh fabrics are either produced from E-glass yarns and rovings or polyester yarns.Thanks to individually developed coatings, they offer numerous advantages for use as reinforcement fabric: from robust and heavy to fine-meshed and lightweight.such as window screen,wall and roof
plastering reinforments.
High tear and tensile strength
Alkali resistance
Thanks to its alkali resistance, the woven fabric is protected from aging and loss of performance, while offering maximum compatibility with mineral and dispersion-based materials.
Uniform fabric appearance and low thickness
Excellent flatness and stiffness
Application-specific weight and flexibility
Finishing options
The glass fiber woven mesh fabrics can be used in various ways in interior fit-out – from wall coverings with imaginative designs and functional properties to wall reinforcement to innovative infrared heating solutions.

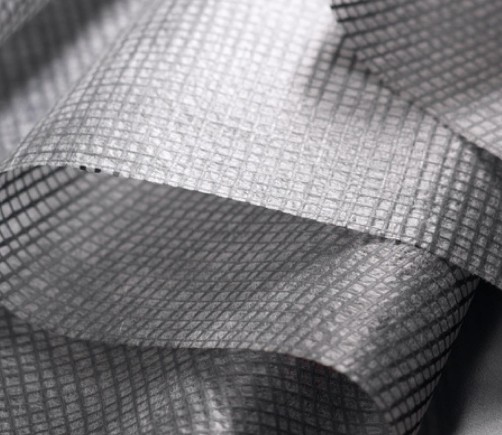

Sheet or textile structures made of glass filament products can be laminated with various substrates.
Major applications are paper reinforcement, flooring, adhesive tapes, vapor barrier facing (glass filament structure laminated with aluminum foil) and pressure-sensitive insulation tapes. our glass filament yarns provide laminated products with outstanding mechanical and thermal characteristics. The high tensile strength and sized yarns suit the requirements of lamination applications.
Laminates combine the superior technical properties of different products. Lamination with a woven fabric, for example, significantly increases the perforation and puncture resistance, which is usually only achieved with tightly woven fabrics or heavy-duty polyester fleece materials.
Due to their clean and closed surfaces, laminates always offer a high-quality appearance.
Non-combustible laminate designs are also available on request.

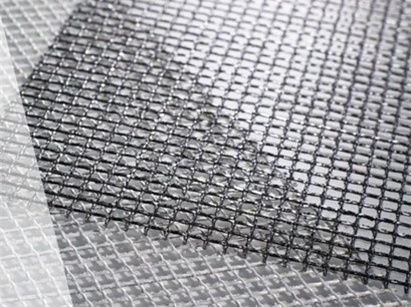

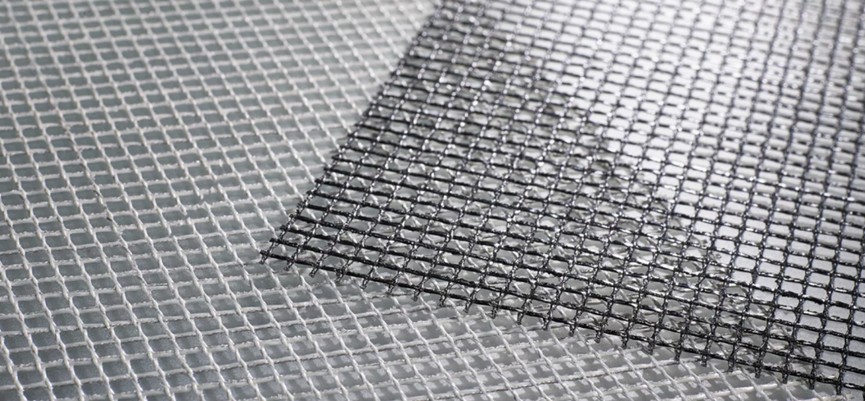

Laminates consisting of two different woven open mesh fabrics are used as drainage and de-watering fabrics due to their adaptable permeability.(following picture)

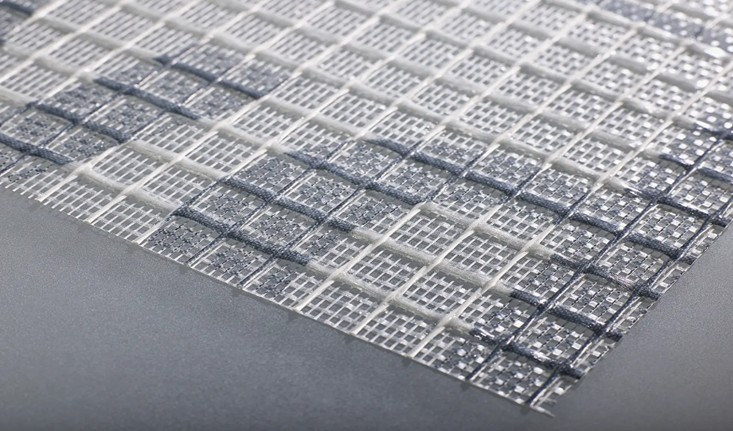

Laminates based on open mesh fabrics knitted from glass or polyester fibers not only excel in flatness, uniform fabric appearance and low thickness; depending on the fiber material used, the knitted fabric exhibits a number of advantageous properties:
When combined with a knitted polyester fabric, the laminate demonstrates good elasticity, which allows the material to adapt optimally to the forces acting on it and thus be used, for example, in roofing and waterproofing membranes.
In combination with a knitted glass fiber fabric, the tear and tensile strength of the laminate is significantly increased, making it ideal for use with insulation materials such as rock or glass wool.

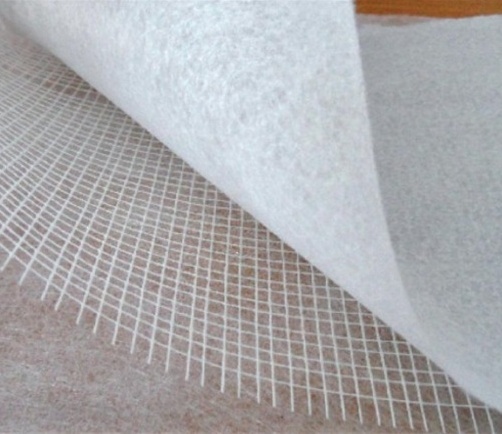

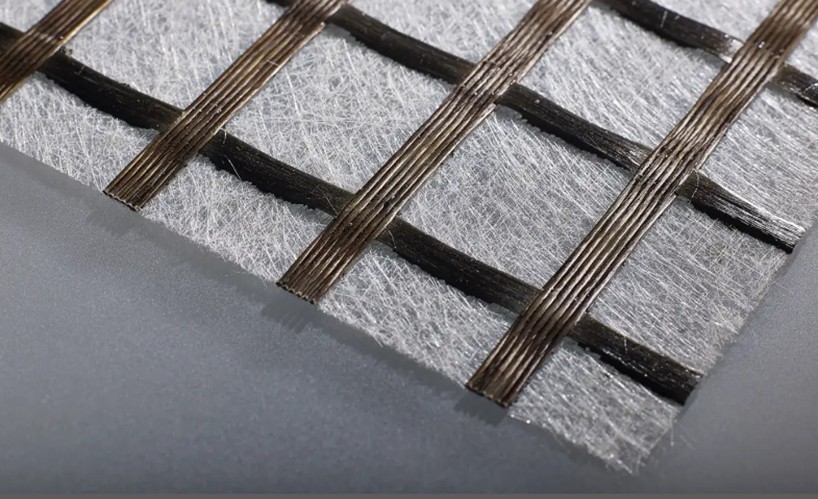

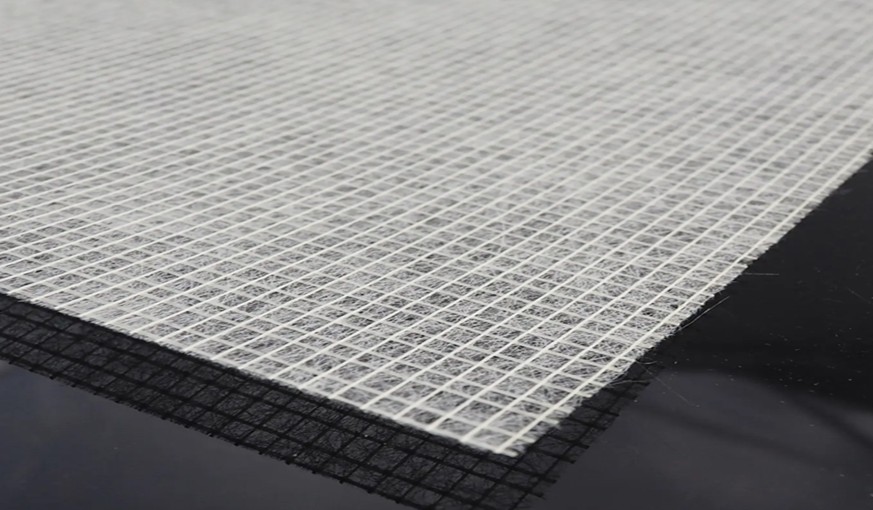

Laminates based on open mesh fabrics woven from glass or polyester fibers and combined with glass fiber fleece are used, for example, in acoustic panels and for coating roofing and waterproofing membranes.
Our success glass fiber technical fabrics in-house developments. Tailored to special application requirements.
From sleep problems and malaise to headaches, the potential health effects from exposure to electromagnetic radiation, known as electrosmog, are manifold. Even diseases of the cardiovascular system, changes in the blood count or cancer are associated with electrosmog.
Certified according to local laws and other regulations, we developed woven E-Shield-Fabric has been engineered for use as reinforcement in exterior insulation and finish systems.
The fabric is used glass fiber interwoven with special metal threads that enable it to effectively attenuate electromagnetic radiation, especially in the frequency range of mobile phone networks.
The high-quality synthetic finish applied to the woven glass mesh fibers makes them alkaline-resistant to the render/plaster system.
Technical parameters
Grammage:175 g/m²；Mesh size: 3.5 x 4mm
Fabric width: 100 cm；Roll length: 50 m
Typical properties
Tensile strength (max.) mean value \[N/5cm]:Warp/weft – ≥ 1750 / 1750
Strength after alkali treatment mean value \[N/5cm]:warp/weft – ≥ 50% / 50%
Elongation (max.) mean value \[%]:warp/weft – 3.9 / 3.9

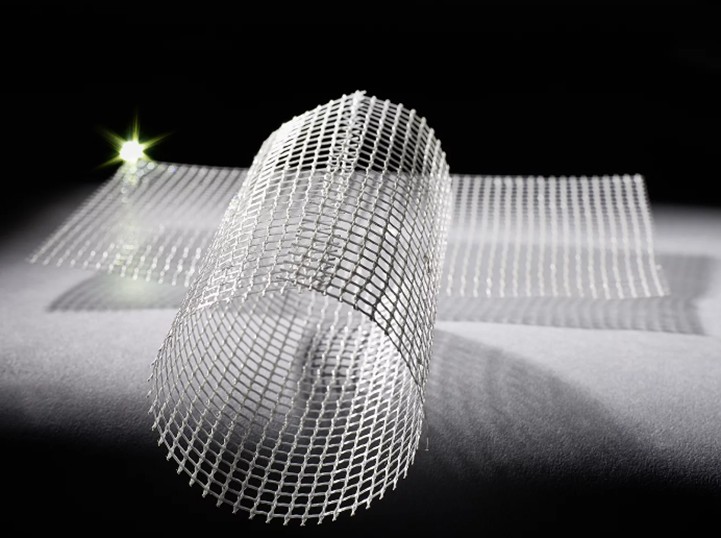

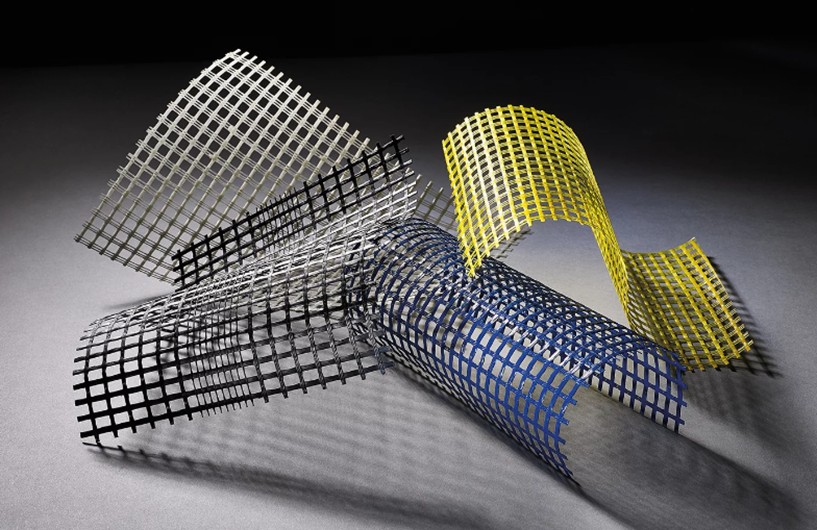

Woven mesh fabrics with thermoplastic finish can be deep drawn and formed to any shape thanks to a special coating.
The forming temperature can be set within a specific range and is typically above 90 °C.
Woven mesh fabrics with heat-sealable finish are often combined with different substrates to produce laminates and are used for reinforcing and stabilizing fleece materials, foils and paper. This type of woven glass mesh fabric can simply be bonded by applying heat and surface pressure without the need for an additional adhesive. Once the activation temperature of the special coating has been exceeded, the coating not only softens, but also produces a strong adhesive effect.

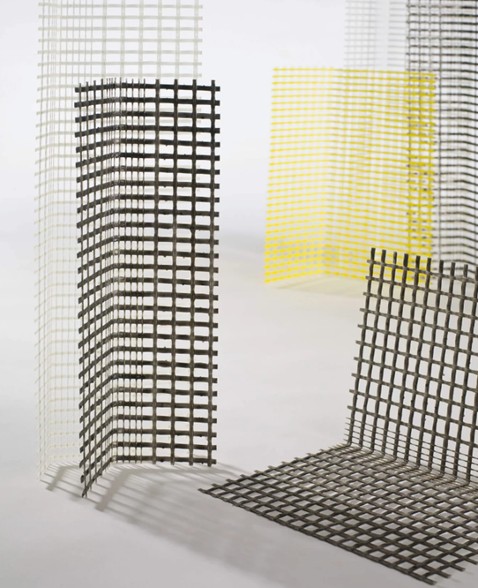

Made from heavy duty, alkaline-resistant woven glass fiber fabrics, corner beads are ideal for reinforcing building corners and window reveals. Featuring a high degree of stability, they can be used with any render/plaster system, forming neat and true corners while offering perfect edge protection. The coarse mesh also makes them suitable for use with coarse-grained mineral systems.
We offer two different types depending on the application:
-Preformed corner beads with reinforced angle to produce a straight edge in areas subject to heavy wear and tear
-Flexible corner beads with predefined mesh angle for ease of use. Supplied on rolls, the bead can be cut to the required length to reinforce building corners and window reveals
