Description of the process

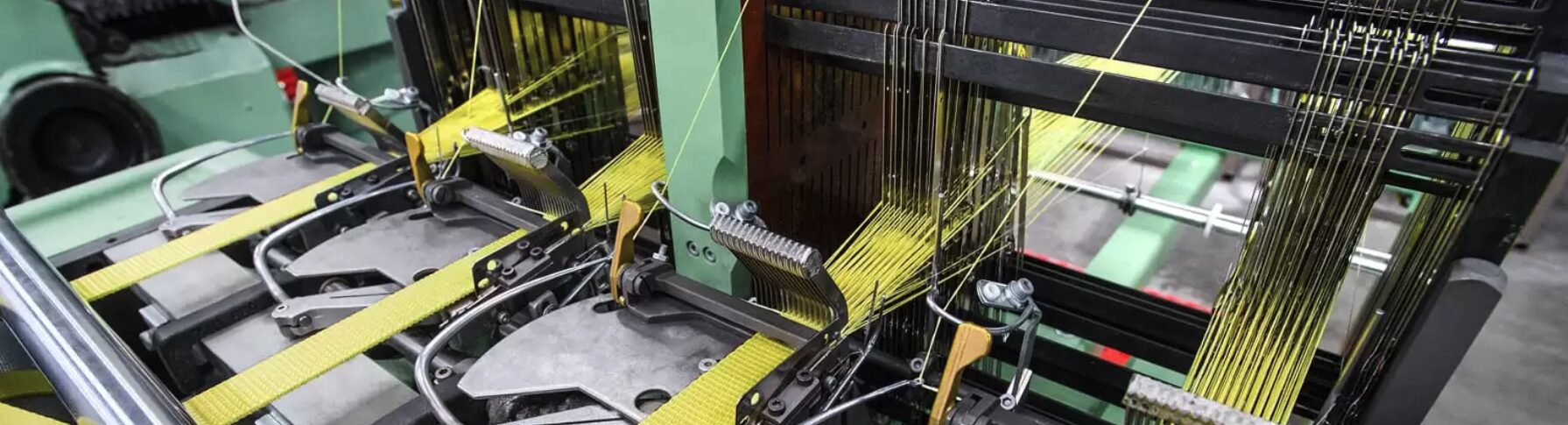

The weaving machine, or loom, interlaces the warp and filling yarns according to a weave pattern to form a fabric structure.

The yarns system in the lengthwise direction of the fabric is called the warp. It is supplied to the weaving machine on a loom beam. Warp yarns are often called ends.

The yarns crossing the warp are referred to as weft or filling. On the new loom generation, they are inserted in the fabric by a weft feeder, allowing for a regular unwinding.

Almost any weave pattern can be woven with glass product. The basic patterns are: plain, basket, twill and their derivatives, unidirectional, as well as leno weave for producing meshes.

The weaving process is made up of five basic mechanisms

MECHANISM 1: The let-off-Motion distributes the warp to the loom

MECHANISM 2: A warp shedding mechanism moves the warp yarn up and down according to the weave pattern.

MECHANISM 3: A filling insertion system introduces the filling between the openings of the warp yarns, carried out by the shedding mechanism.Filling glass products are basically inserted using modern picking systems: Air jet, Rapier, Projectiles or Needle (loom for narrow fabrics).

MECHANISM 4: A reed moved by the beat-up Motion beats the filling between the warp yarns against the fabric in formation.

MECHANISM 5: A fabric take-up regulates the filling density and the fabric is wound onto a tube on the loom or with a separate winding device.
