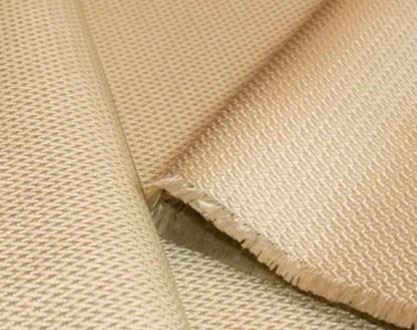

The technical glass fiber fabrics

Introduction

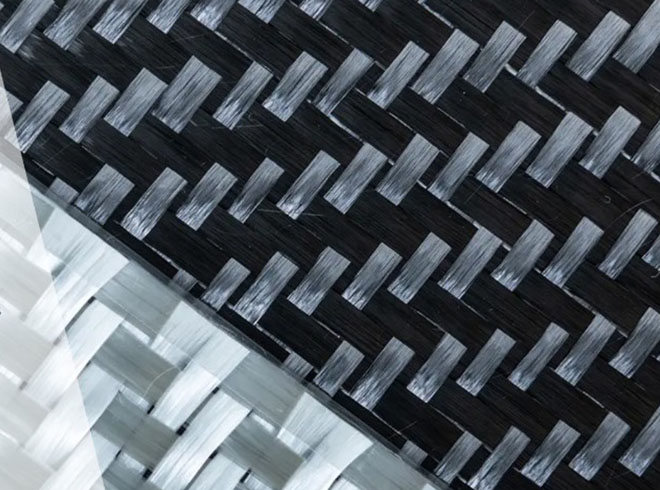

When it comes to the production of technical fabrics, the possibilities are almost endless. Whether woven rovings made of glass or carbon, technical fabrics as coating carrier or for filtration, the production options are vast:

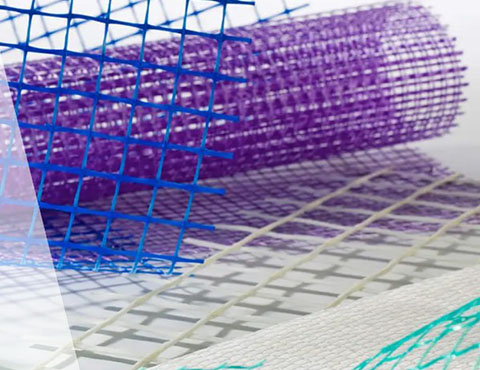

-Traditional mesh structures with leno weave technique
-Compact and closely woven fabrics with air-jet or rapier weaving machines
-Warp beam weaving and creel feeding possible

Glass fiber product solutions for the coating industry:

The coating industry is very diversified, which leads to a wide range of requirements for the products used in this sector. our technical textiles, produced from glass fiber , offer a wide range of applications in this area thanks to their individual raw material and coating variants. Such as fire blankets for metal welding and cutting or grinding,for EV car fire or home application;fire curtain or smoke curtains;fire bag for battery proection;induction blankets;heat shields;etc.

Custom technical parameters

Fabrics made from glass fiber are used in a variety of ways in the coating industry.

The specific material properties of the coating carriers mean that the technical parameters of the coated fabrics, such as maximum tensile strength or elongation and shrinkage behavior, can be tailored perfectly to the intended application.

Custom raw material combinations and coating options

The coating industry field is very diversified, which leads to a wide range of requirements for the products used in this sector.

The manufacture of technical fabrics can be tailored just as individually. The yarns and rovings used are made of glass, aramid or Gualon, for example. If desired, another additional coating can be subsequently applied, for which silicone, acrylate, PTFE/Teflon, graphite, fluorocarbon, polyurethane as well as various fire- and flame-retardant materials are available.

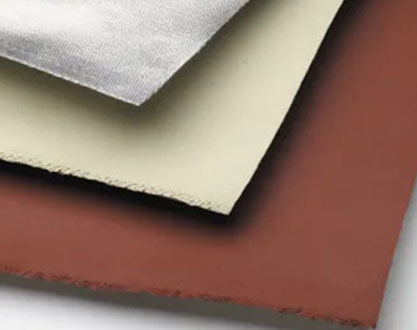

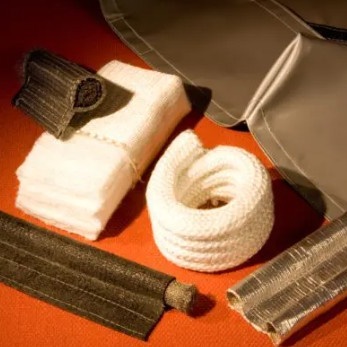

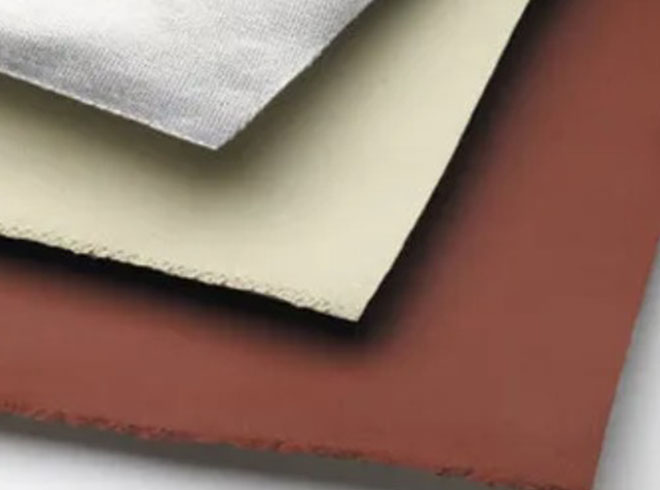

Different coating material finished fiberglass Fabrics

These fiberglass fabrics are widely used for thermal insulation, acoustic insulation, and for protection from heat and fire. These woven high temperature fabrics support operating temperatures up to 1000°F / 540°C and peak temperatures up to 1300°F / 700°C. This flame retardant fabric is made from inorganic materials so they will not produce hazardous out-gassing.

Applications

This fiberglass cloth is available with a variety of high temperature coatings and treatments for specialized high-temperature applications.

Specifications

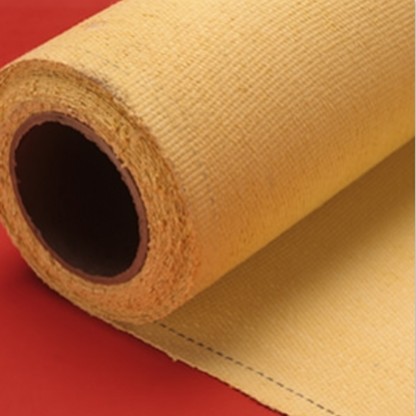

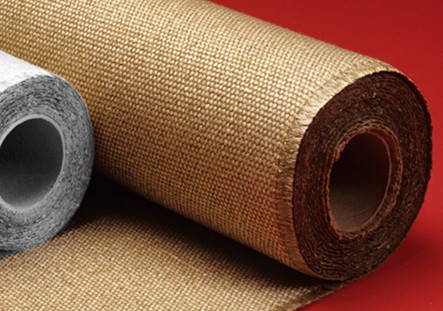

Vermiculite Coating

The proprietary vermiculite coating increases the operating temperature resistance of the fiberglass fabric to 1500°F (815°C) and peak temperature resistance to 2000°F (1095°C). This high-temperature coating also improves abrasion resistance.
The vermiculite coated fiberglass fabrics are commonly used in fire curtains, fabric expansion joints, and pipe or tank insulation systems.
HardTape Vermiculite Coating for Improved Temperature and Abrasion Resistance
Our Vermiculite Coating is one of our most reliant high temperature coatings; it causes heat to disperse evenly across the surface of the fiberglass fabric, significantly boosting its temperature rating and abrasion resistance. Vermiculite Coated Fiberglass Fabrics withstand operating temperatures up to 1500°F / 815°C and peak temperatures up to 2000°F / 1095°C.
The Vermiculite Coating has larger platelets and a greater percentage of solids than competitive vermiculite coatings. The larger platelets give the high temperature coating better coverage and allow it to more effectively disperse heat across the surface of the fabric. In addition, the Vermiculite Coating features an organic adhesion promoter that reduces flaking and wear while improving moisture resistance.
Materials used to fabricate high temperature gloves, welding blankets, or insulation blankets are often treated with a vermiculite coating.
-Wire inter-woven Fabric: this Steel wire reinforcement fabric increases the strength and durability of these fiberglass fabrics for improved performance in high vibration or abrasive high temperature environments.
These strong flame retardant fabrics are commonly used in fire retardant curtains, equipment and pipe insulation, and other high temp insulation systems.

Rewettable Coating treated fabric

A Water-Activated Coating that Dries Hard to Form a Barrier

The rewettable coating is an inorganic clay-based coating applied to HardTape Fiberglass Fabrics for encapsulation applications. This high temperature fabric can be moistened at the application site and then dries to create a hardened paint-able surface, making it ideal for use in high temperature insulation, lagging, and encapsulation applications, like asbestos abatement. these fabrics are coated with a water-activated clay that dries hard to create a firm, fire resistant material.

The rewettable coating can withstand temperatures up to 1000ºF / 540ºC.

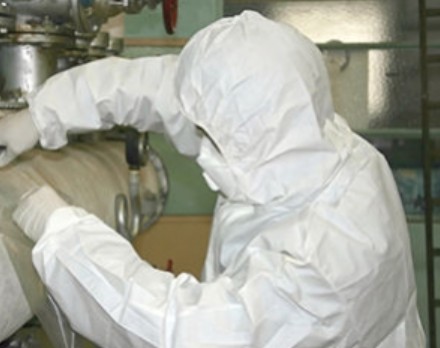

Common Applications include :Encapsulation,Asbestos Abatement,Insulation Systems,Lagging

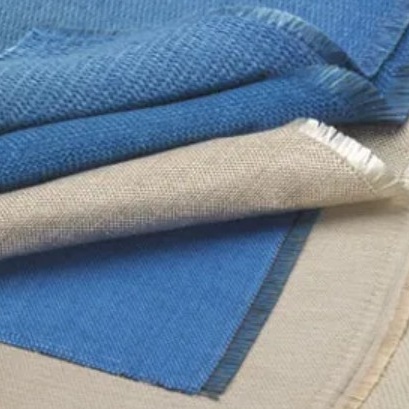

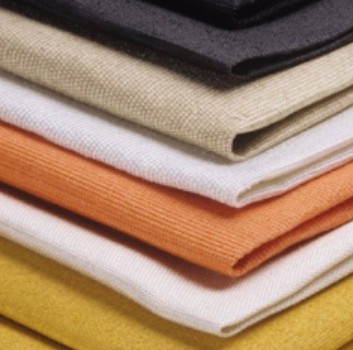

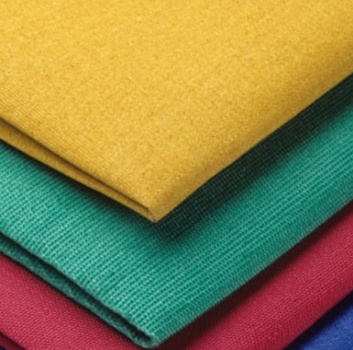

Additional colour treated or coated glass fiber fabrics

For Ease of Identification and Improved Handleability

We offer black, yellow, red, blue, green, orange, and salmon color treatments. Color-treated fiberglass fabrics and coated fabrics are used in a variety of industries for aesthetic or identification purposes. Color treatment does not significantly change the heat rating of a fabric, but it does provide added benefits including improved handling, increased weave stability, and fewer broken filaments.

We can create custom dye colors upon request for large orders. Contact us for more information.

above mentioned fiberglass cloth can be color dyed for aesthetic or identification purposes. They can also be treated with lightweight coatings designed to reduce fray and irritation or improve resistance to oil and water.

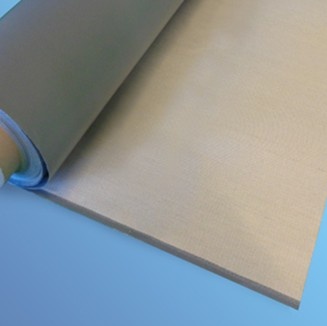

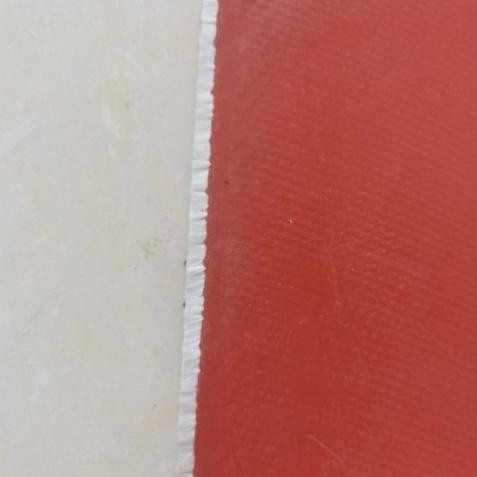

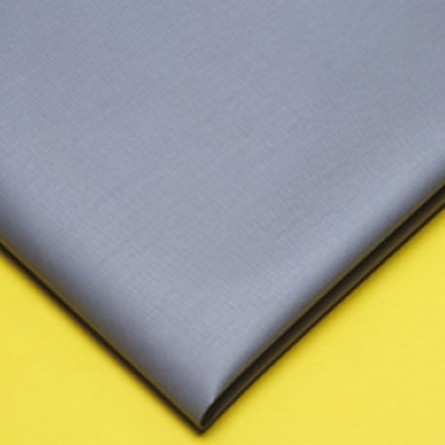

Silicone and PTFE glass fiber fabrics resist weather, water, chemicals, and oil

Silicone and PTFE Coatings for Abrasion, Weather, and Chemical Resistance

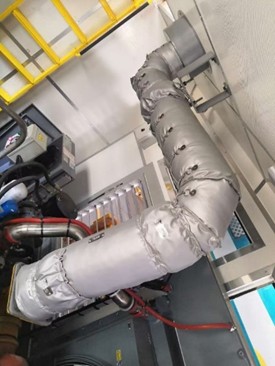

Our PTFE and silicone products are commonly used as the outer layer in fabricated systems that protect insulated pipes and equipment from the environment. These fabrics are also frequently used in products that protect workers and facilities from heat and fire. They offer superior resistance to chemicals, abrasion, moisture, and heat. The PTFE coating provides added toughness and chemical resistance while the silicone coating provides strong weather, water, and abrasion resistance. The silicone coating comes standard in silver, but it is also available in red by special request for large orders.

The silicone coating can withstand peak temperatures up to 500°F / 260°C and the PTFE coating can withstand peak temperatures up to 600°F / 315°C. The coatings will char or disintegrate at these temperatures, however, the base fabric beneath the coating likely has a higher heat tolerance.

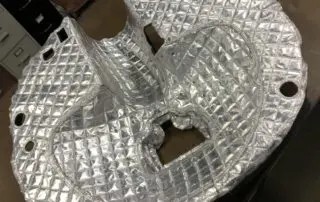

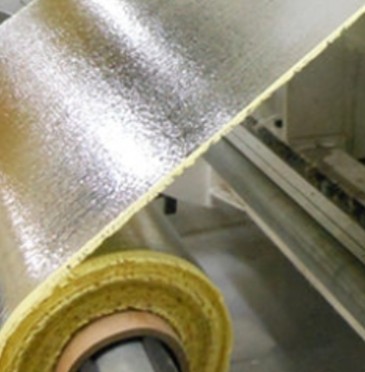

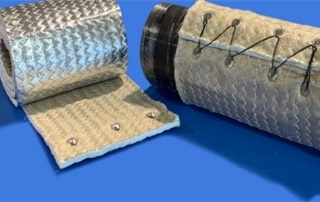

Aluminium foil laminated glass fiber fabrics

While HardTape’s advanced aluminized fabrics are primarily used to create garments for firefighters and industrial workers,the potential uses of HardTape aluminized fabrics are limitless due to the unique insulation and heat reflective properties of the material. The aluminized surface is also impervious to most aqueous and hydrocarbon-based compounds, as well as being high temperature resistant and flame retardant.

If your application requires one of these properties, we probably have the right material for you.





Recent Applications Include

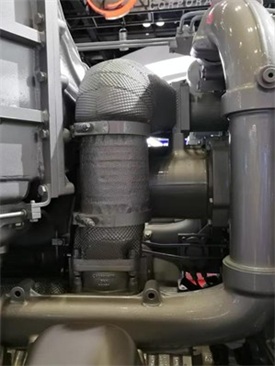

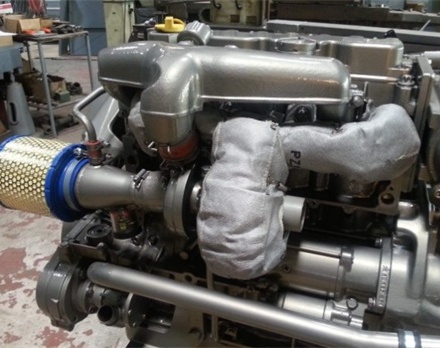

Various under the hood and heat shield applications in auto racing and the automotive industry

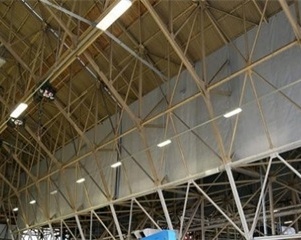

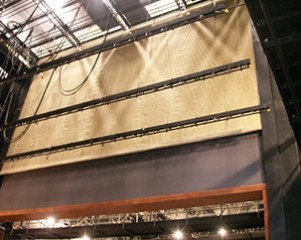

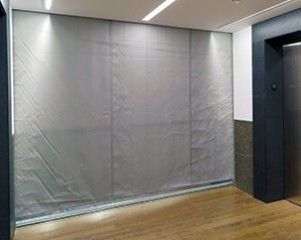

fire and smoke curtains for civil buildings

Turbine covers for yachts and boats

Structural fire shelters;

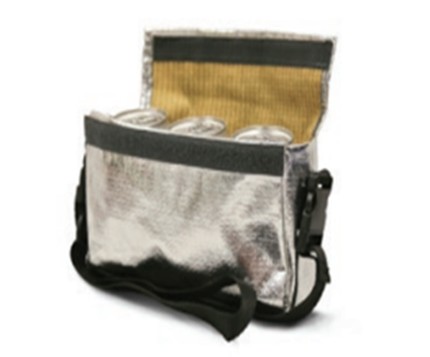

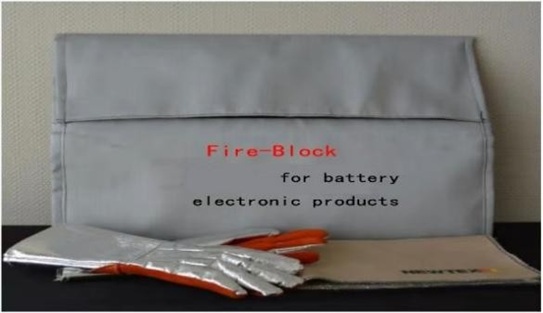

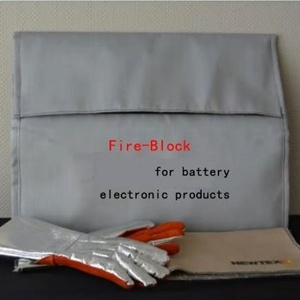

Fire-resistant bags and briefcases for transporting documents, Lithium battery powered electronic products such as lap-top computers,tablets,mobile phones.

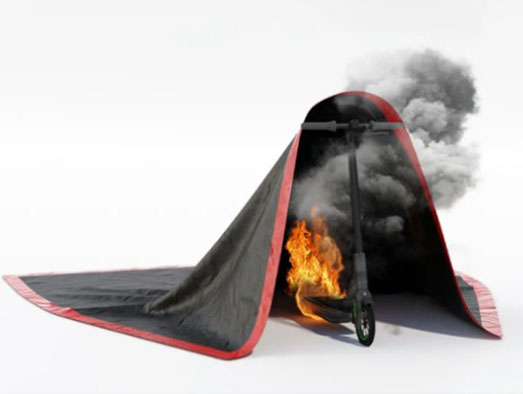

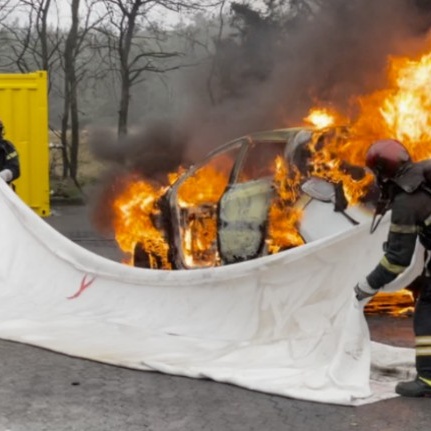

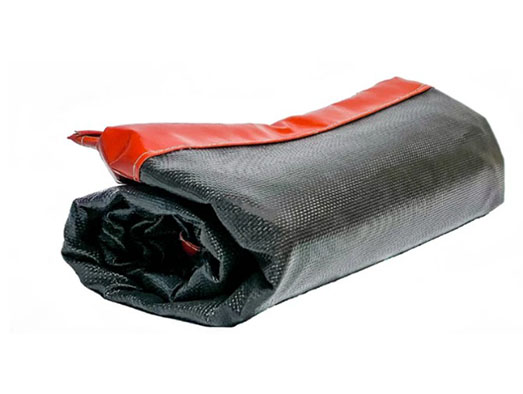

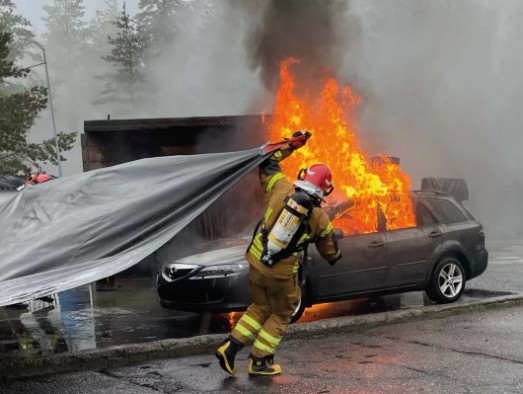

Glass fiber made vehicle fire blankets

Every fire starts small. The key is to isolate and extinguish it before it becomes a disaster. From kitchen appliances to cars and forklift trucks, HardTape Fire Blankets are the fastest, simplest and safest way to contain and extinguish fire – and the only solution to work on lithium batteries and electric vehicles.

Features

Why Choose a HardTape Fire Blanket

Controls fire in any car in seconds
Reusable
Isolates fire and smoke in seconds
Easy to deploy
Includes Smart Bag
Wall mounted or Smart Bag storage
No water – no foam – no mess
Process is faster, cleaner and greener

Where to use a Bridgehill Fire Blanket?

Electric car fires
Car fires, including SUVs & land cruisers
Solar panel fires
Carpark & underground carpark
Charging stations & fuel stations
Fire stations
Tunnels
Airports & ferries

Normal sizes of HardTape vehicle fire blanket

Size Small: 1.5m x 1.5m
Weight: 7.5KG
Size Medium: 3m x 3m
Weight: 21KG
EV-rated fire blanket of pyroxene, silicone and BridgetechTM

Service Temperature on core fabric

Short Term ± 1600 °C
Long term ± 800 °C

How to use the fire blankets

Step 1: Take the fire blanket out of the Smartbag.
Step 2: Gently cover the burning object.
Step 3: Make sure the fire blanket is tight all the way around the burning object. Wait at least 20 minutes.
For fire in electric vehicles, scooter, tools etc. we recommend to leave the fire blanket on until the object has been transported to safe place.

Additional information of HardTape fire blankets

Isolate and extinguish small fires.

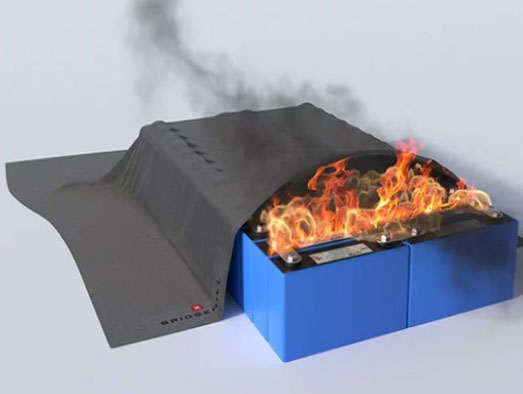

Blocks any fire, even small lithium battery fires.
Multipurpose.
Immediately isolated toxic gases and smoke, protecting civilians from carcinogen exposure.
Requires no maintenance.
Metal chain integrated to add weight for easier use.

Enhances Ease of Handling and Fabrication

Glass fiber fabrics Heat Cleaned (HC)

Heat Cleaned fabrics are treated at high temperatures to remove broken filaments and manufacturing finishes like binders and lubricants. The process improves weave stability while reducing skin irritation and airborne fibers. Removing manufacturing finishes also reduces the amount of smoke the product will generate when exposed to extreme temperatures.

Fabrication Treatment (FAB)

Fabrication Treatment is an acrylic coating applied to one side of the fabric. The treatment is designed to improve weave stability and abrasion resistance, prevent fraying and make the fabric easier to cut.

Regular Treatment (RT)

Regular Treatment is a very light acrylic coating applied to improve weave set and reduce skin irritation. The Regular Treatment is a lighter coating than the Fabrication Treatment. It is applied to both sides of the fabric and resists temperatures up to 1000°F / 540°C. Regular Treatment does not impact the strength of a fabric.

Oil and Water Resistance (OWR)

Oil & Water Resistance is a lightweight protective coating applied to fabrics to prevent wicking and to improve resistance to oil and water. It improves abrasion resistance and tolerates temperatures up to 1000°F / 540°C.

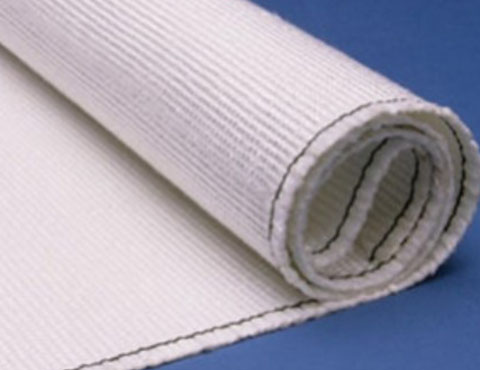

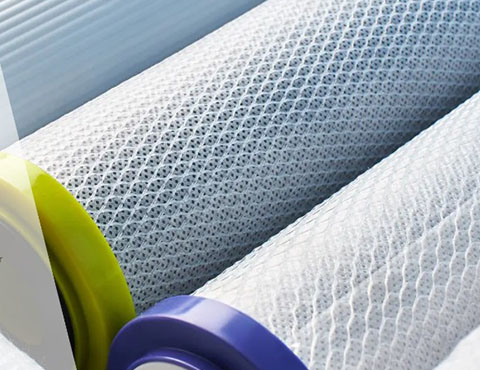

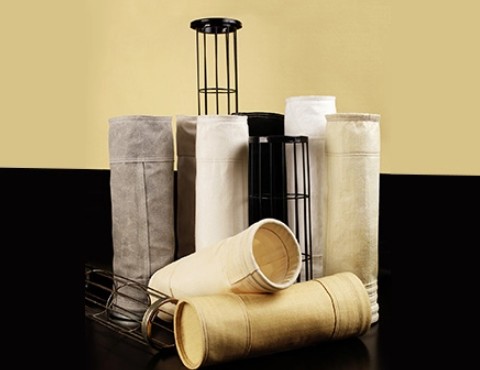

Filtration fabrics of glass fiber

Glass fiber woven fabrics are widely used in different filtration application area

From reinforcements for filter media to custom technical textiles for solid/liquid separation, hot gas or particle filtration.

Since filter media are subjected to considerable daily wear, it is important to reinforce them sufficiently. we produces special support and protective fabrics that have the necessary strength and stability. Customized technical textiles for solid/liquid separation, hot gas or particle filtration can also be designed according to customer requirements.

Our glass fiber woven fabrics for filtration application have following advantages:

-Strength and stability

For applications in wet filtration, where solid-liquid separation takes place, the filter medium used must be able to withstand the strong, continuous, and constantly fluctuating pressure forces which are sometimes at work.
By introducing a support and protective fabric in the form of a woven mesh fabric, the filter is given the necessary stability and strength to ensure a long service life.
In particle filtration (air purification), the glass or cotton mats used can also be additionally reinforced and protected by means of a woven mesh fabric. They have the advantage of being easy to handle so as to make assembly at the customer’s end as efficient as possible.

-Excellent thermal and chemical resistance

During hot gas filtration in incinerators, the filter media is sometimes exposed to high temperatures or chemical vapors.
our filtration fabrics can be produced from various raw materials such as glass, polyester HT, aramid and other synthetic fiber materials and thus tailored to specific requirements.
Filtration fabrics made of glass fiber materials for solid/liquid separation, hot gas or particle filtration.
The materials are selected for the different fabric constructions in line with the desired filtration effect and resistance.
A wide range of filtration fabrics can be produced – from open supporting fabrics used in the production of needle-punched fleece for hot gas filtration to highly dense fabrics for solid/liquid separation.

Application of glass fiber fabrics:

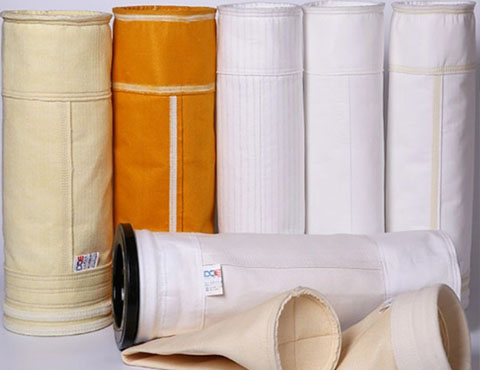

Pulse Jet / reverse air or shake cleaning
Refineries，Basic Power Generation，Large Utilities，Asphalt Production
Carbon Black Production，Co-Generation，Industrial Boilers

high silica fabrics for severe hot works

Satin weave

plain weave

Specility coated fabrics

broken twill weave

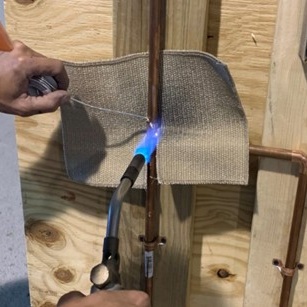

Silica Fabrics give superior protection from weld slag and sparks in hot work operations.

Satin Weave our high Silica Fabrics have different weave patterns,such as satin weave,broken twill weave,plain weave for relevant applications.

the amorphous Silica Fabrics are high temperature fabrics used in a wide range of insulation and protection applications such as welding curtains, welding blankets and welding pads. high Silica Fabrics have a minimum silicon dioxide content of 96% and can be fabricated into many forms to withstand temperatures up to 1800°F (982°C). our high Silica Fabrics are available with our standard proprietary surface treatment for improved handling and fray resistance. The Silica Fabrics are extensively used in the Power Generation (Nuclear Approved), Refineries, Shipbuilding and Repair, Metal Processing, Petro-Chemical, Aerospace and Automotive industries.

Our high silica fabrics also can be treated or coated with different materials,such as laminated aluminium foil,silicone,etc.,for different purposes.

Area mass from 170-1350g/m2,width from 85-1260cm.

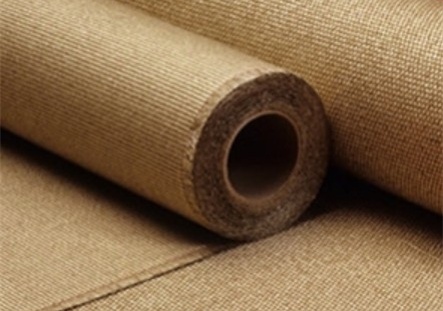

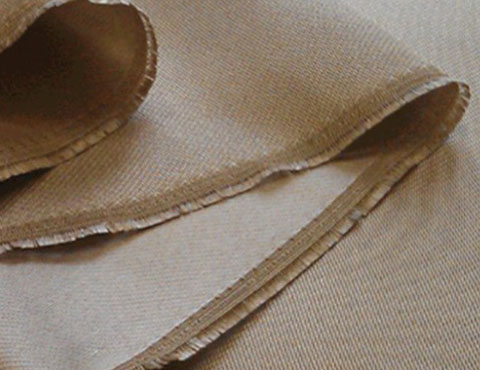

Heat treatment glass fiber fabrics

Introduction

Manufactured using premium grade E-glass fiberglass fabric that has been heat treated prior to the application of a proprietary High Temperature (HT) treatment. Hard Tape HT fabrics can be used in continuous temperature applications up to 1200°F (649°C) while maintaining excellent pliability and moderate strength. Typically used in textile fabrication for removable covers and expansion joints.

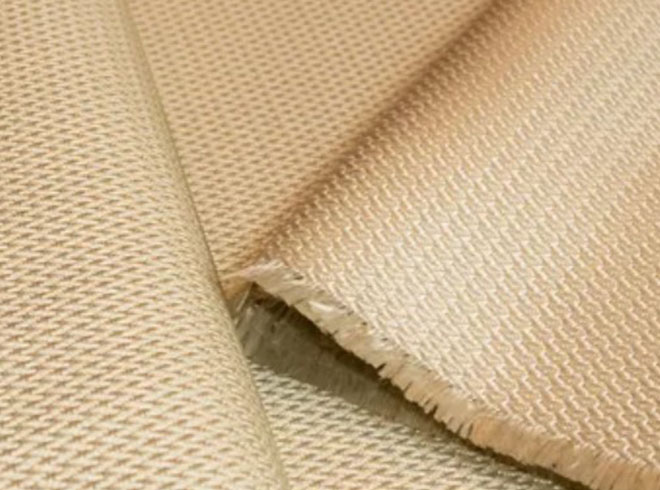

HardTape Heat treatment SATIN WEAVE FIBERGLASS FABRICS

HardTape HT Treated Satin Weave Fiberglass Fabrics are specialty fiberglass fabrics for continuous temperature applications. Using a special coating process, the fiberglass fabrics are treated with a proprietary inorganic treatment in order to extend the continuous temperature capability of the fabrics. Conventional fiberglass fabrics can only be used at continuous temperatures up to 800°F (427°C), our HT treated satin weave fiberglass fabrics can withstand continuous temperatures up to 1200°F (649°C) while maintaining good strength and flexibility. the HT treated satin weave fiberglass fabrics consistently outperform both standard fiberglass and other so-called “treated” fiberglass fabrics in elevated continuous temperature applications.

Applications

HardTape HT Fiberglass fabrics are used to manufacture high temperature textile products for industrial applications. the HT fiberglass fabrics are typically used in dynamic conditions where textile products are flexing and moving in high temperature conditions. Typical uses are expansion joints, tube seals,removable insulation covers, and exhaust applications.

Specifications

No.	Items		Unit	Technical properties data
1	Product Code			HT8S	HT12S
2	Weave style			8 harness satin	12 harness satin
3	Density	Warp	ends/cm	18	16
3	Density	Weft	ends/cm	13	12
4	Initial tensile strength	Warp	Kg/cm	98.2	121.4
4	Initial tensile strength	Weft	Kg/cm	78.6	97.2
5	Tensile strength after 3 hours at 700℃	warp	Kg/cm	39.3	53.6
5	Tensile strength after 3 hours at 700℃	weft	Kg/cm	30.4	39.3
6	Thickness		mm	0.76	1.4
7	Weight		g/m2	880	1760
8	Widths		cm	150	150
Notes:	- All fabrics are made of continuous filament yarn - Stardard roll length is 50m - Fabric colour is tan

HardTape cannot predict all of the potential applications for which customers may attempt to use the HT specialty fiberglass fabrics. the HT specialty fabrics will have varying degrees of effectiveness for each potential application depending on the maximum temperature attained, the length of use, and the amount of temperature fluctuation. If the customer has any questions regarding the use of our HT specialty fiberglass fabrics Products in a particular application, please contact us and we will provide a sample of the HT specialty fiberglass fabrics for testing. This product is not warranted against injuries or damages of any kind caused by uses for which this product was not designed, intended, or tested by HardTape.

Advantages:
